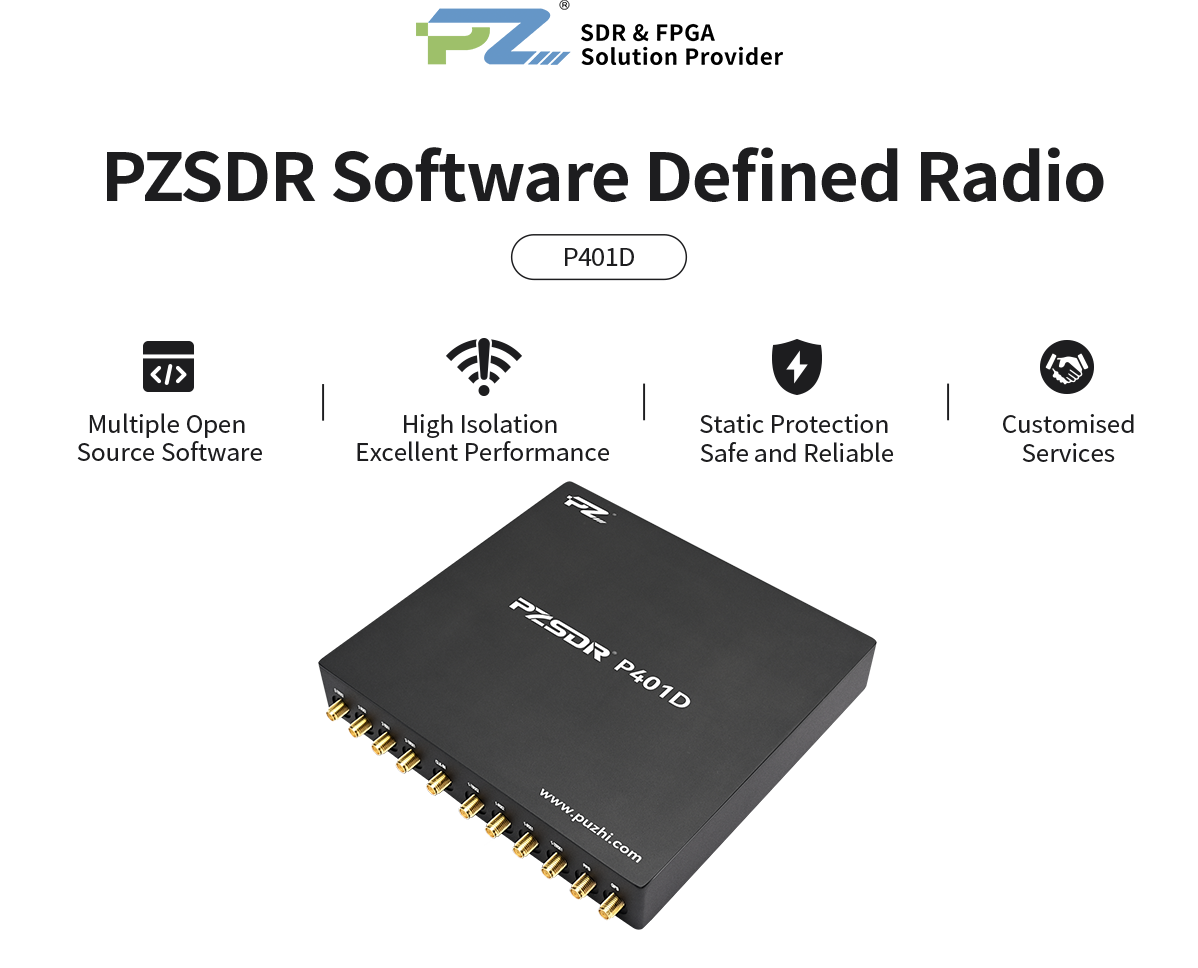

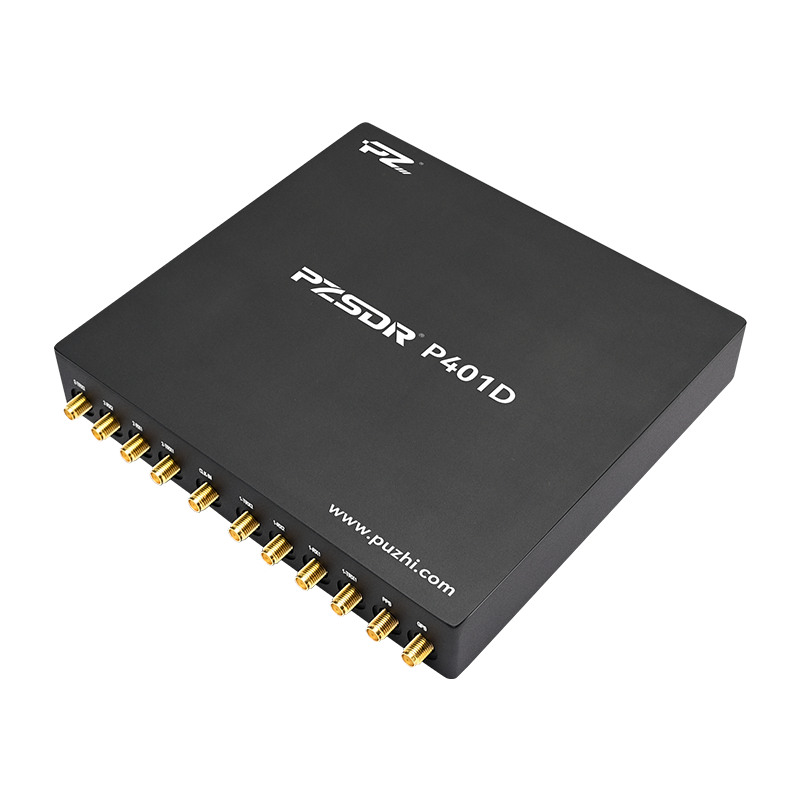

Puzhi PZSDR Software Defined Radio ZU4EV+AD9361*2
- RF chip AD9361，Frequency range 70M-6Ghz，Signal bandwidth 200K-56Mhz
- PS Side 2GB DDR4，256Mb QSPI FLASH，Power Amplifier 22dbm
- Dimensions：Board 150mmx160mm、Shell 170mmx160mmx28mm
- 4TX 4RX，High Isolation Excellent Performance，Static Protection Safe and Reliable
- Support open source software，Provide hardware reference & software rich routines，Customised Services

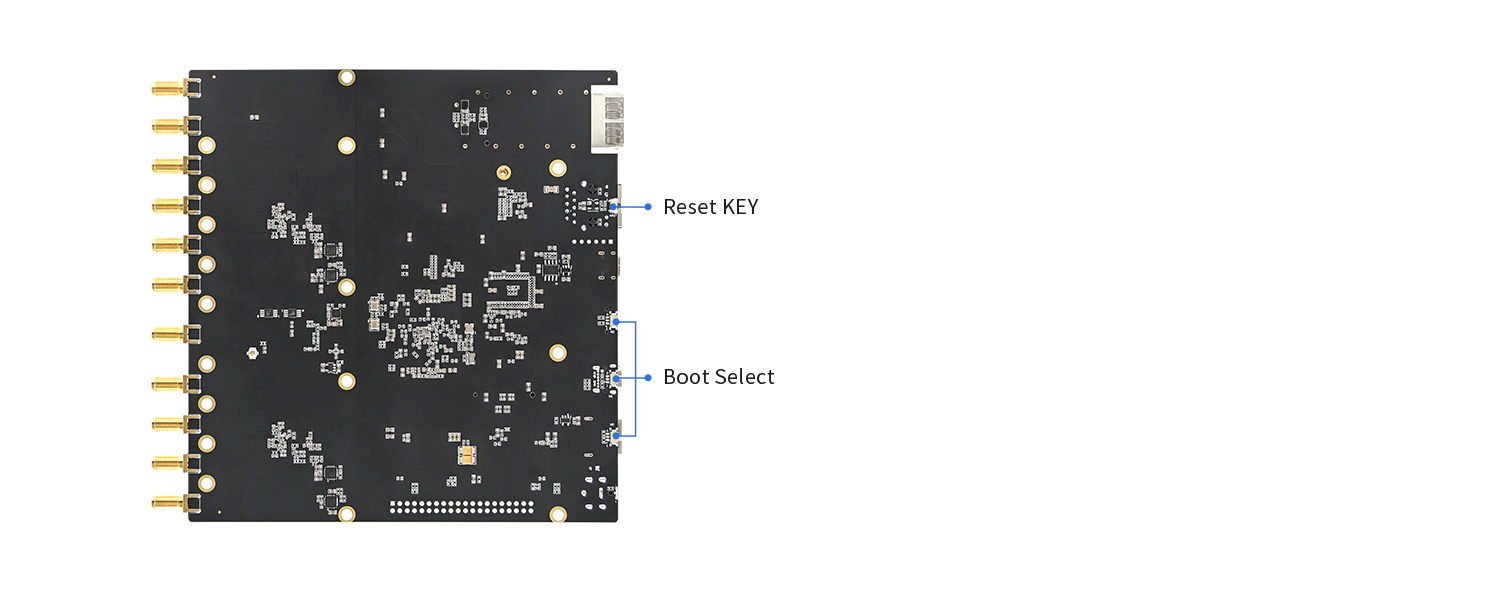

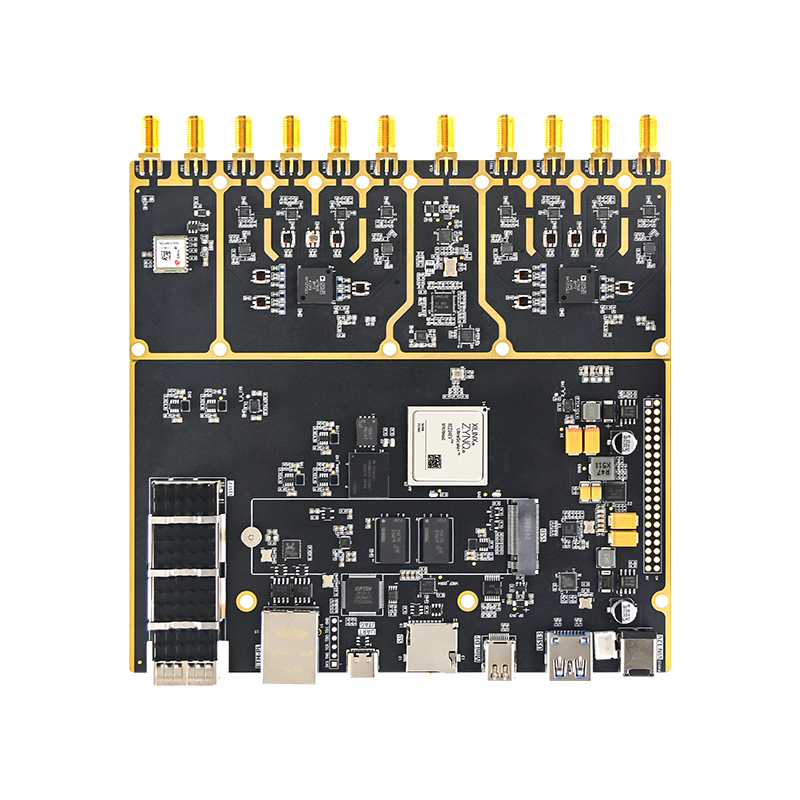

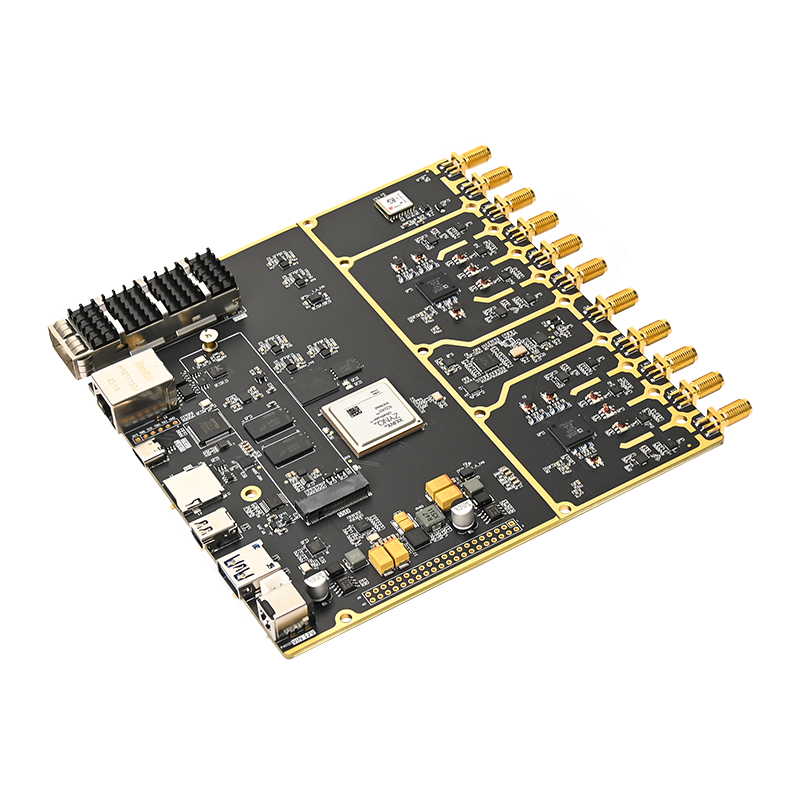

Interface Function Display
Product Parameters
PZSDR Main Parameters
SDR Module | P401D |
FPGA Chip | XCZU4EV-2SFVC784I |
Processor Core | 4 x Cortex-A53-1.3Mhz 2 x Cortex-R5-533Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade(-40°C~+85°C) |
Logic Cells | 192K |
Lookup Tables | 176000 |
Flip-Flops | 88000 |
DSP Slices | 728 |
BLOCK RAM | 4.5Mb |
RF Chip | AD9361BBCZ |
Frequency range | 70M-6Ghz |
Signal Bandwidths | 200K-56Mhz |
Power Amplifier | 22dbm |
DDR4 | PS Side 2GB |
QSPI FLASH | 256Mb |
RF Clock | 40 MHz VCTCXO (0.1 ppm) / External Input |
Gigabit Ethernet | PL Side 1 Gigabit Ethernet |
USB3.0 | 1 |
UART | 1 |
JTAG | 1 |
SD Card Slot | 1 |
GPS | 1 |
PPS/10M input | 1 |
External Clock Input | 1 |
Expansion Port IOs | 40-pin 2.54mm pitch connector (including 5V/3.3V power supplies, 32 signal lines) |
Form Factors | Board: 150mm x 160mm ( 5.91 inch x 6.30 inch ) with Shell: 170mm x 160mm x 28mm |
Protection Class | All External Interfaces are Protected against Static Electricity, Clock/RF are Shielde |
Power Supply | 12V/3A |

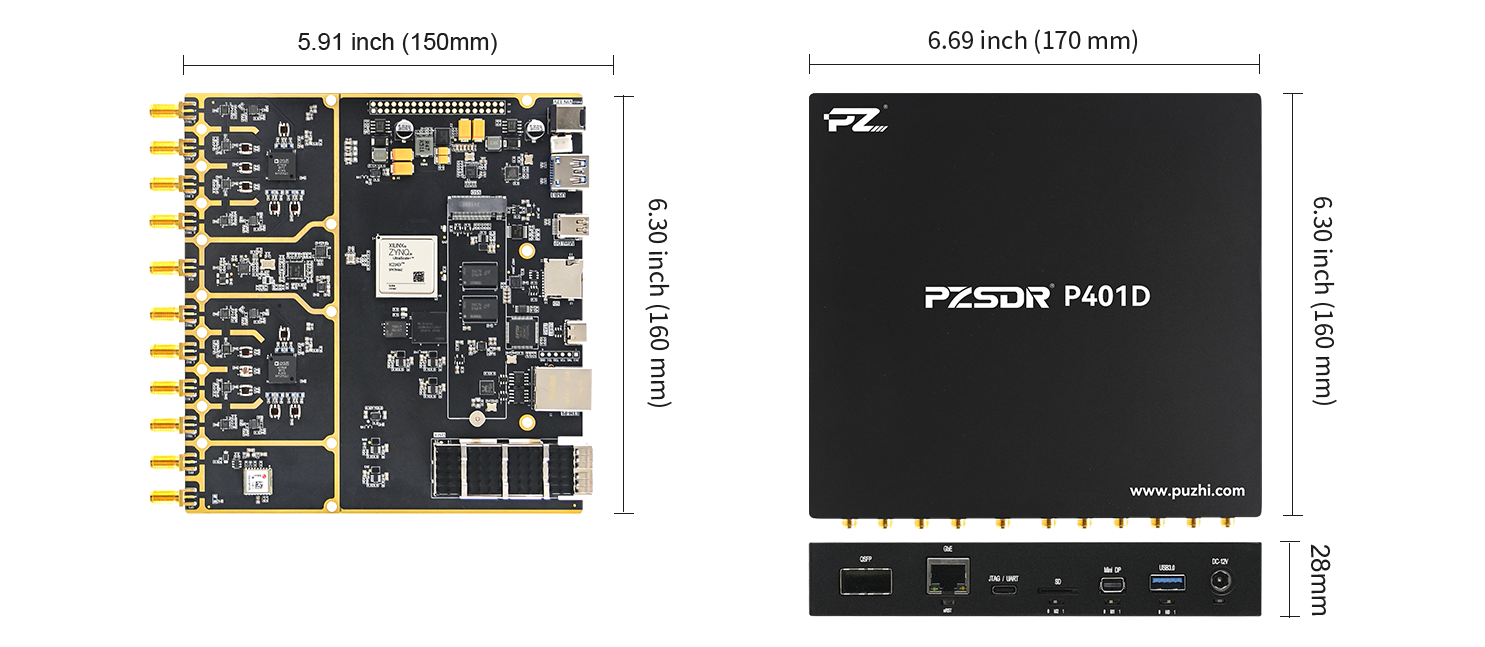

Product Dimensions
Rich Support Resources
Initial Code & Firmware | 1. Bare Metal Test Code 2. ADI-FMCOMMS5 Partially Compatible Firmware 4. ADl-IIO-USB3.0 (NCM-3.75G)-EMMC Test Firmware |
Open-source Project Support | 1. ADI IIO-oscilloscope 2.Spectrometer Upper Computer Software |
Software Support | 1. libiio 2. ADI IIO-oscilloscope 3.Upper Computer Acquisition and Processing Software |

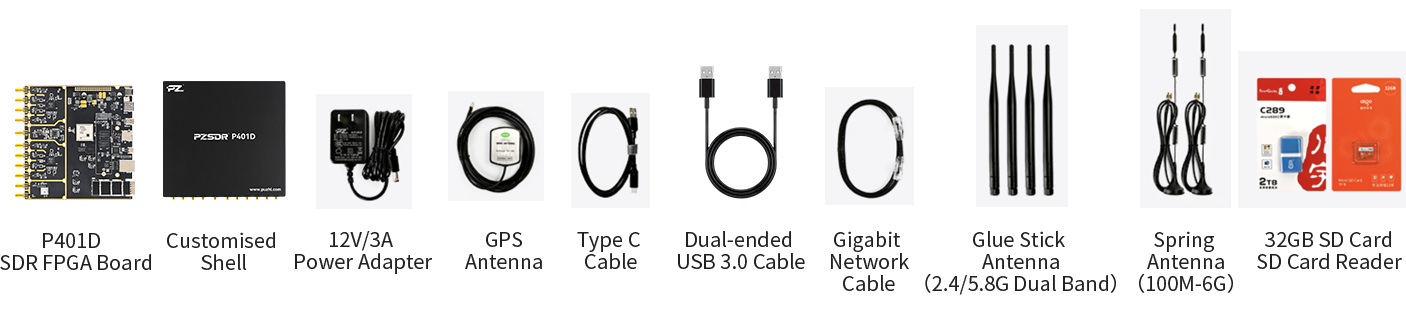

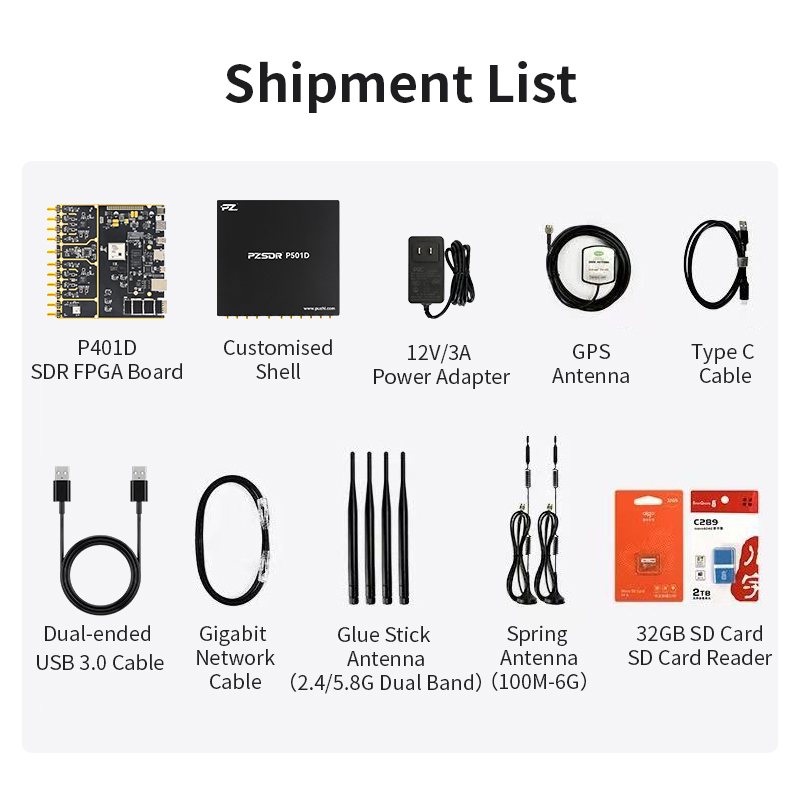

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
Leave us a message
Puzhi focuses on SDR and ARM/FPGA technology solutions
